Stainless Steel straps and protection devices for LV-ABC lines

Stainless Steel straps and protection devices for LV-ABC lines are used to attach cable protection, anchoring and suspension assemblies and other devices mainly to poles. The steel straps are cut from a roll to the required length. The strap is fixed with the appropriate buckle and a binding tool.

Stainless Steel straps and protection devices for LV-ABC lines

Application

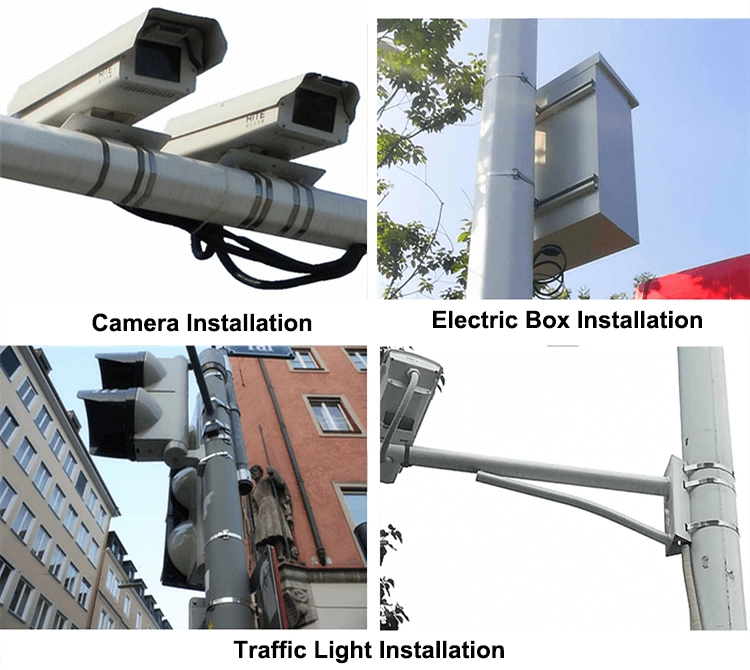

Stainless steel straps are used to attach cable protection, anchoring and suspension assemblies and other devices mainly to poles.

The steel straps are cut from a roll to the required length. The strap is fixed with the appropriate buckle and a binding tool.

Features

• stainless steel grade 304/202
• min. breaking strength 0.6 kN/mm2 • width of 10 and 20 mm
• thickness of 0.4 and 0.7 mm
• rolls of 50 m in carrier case

Model	Width		Thickness		Weight
Model	Im .	mm	Im .	mm	Ibs	kg
SMB1450	1/4	6.35	0.020	0.50	1.76	0.80
SMB3850	3/8	9.53	0.020	0.50	2.64	1.20
SMB1276	1/2	12.70	0.030	0.76	5.50	2.50
SMB5876	5/8	15.88	0.030	0.76	7.04	3.20
SMB3476	3/4	19.05	0.030	0.76	8.27	3.76

Availble in mill coil lengths .All size in standard cardboard packing .

Type 304 Stainless Steel

Model	Width		Thickness		Weight
Model	Im .	mm	Im .	mm	Ibs	kg
SMB3850	3/8	9.53	0.020	0.50	3.08	1.40
SMB1276	1/2	12.70	0.030	0.76	5.94	2.70
SMB5876	5/8	15.88	0.030	0.76	7.48	3.40
SMB3476	3/4	19.05	0.030	0.76	8.71	3.96

Customers can assign different colors for different sizes .

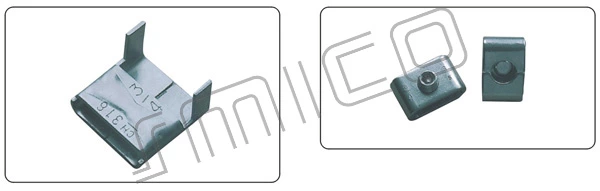

Tooth type

Model	For band width		Thickness
Model	Inch	mm	mm
SMBT14	1/4	6.35	0.8
SMBT38	3/8	9.53	1.0
SMBT12	1/2	12.70	1.2
SMBT58	5/8	15.88	1.2
SMBT34	3/4	19.05	1.5
SMBT1	1	25.40	1.8
SMBT114	1 1/4	32.50	2.0

L type

Model	For band width		Thickness
Model	Inch	mm	mm
SMBL14	1/4	6.35	0.6
SMBL38	3/8	9.53	0.7
SMBL12	1/2	12.70	0.7
SMBL58	5/8	15.88	0.8
SMBL34	3/4	19.05	1.0

Stainless Steel straps and protection devices for LV-ABC lines

LX type

Model	For band width		Thickness
Model	Inch	mm	mm
SMBLX14	1/4	6.35	0.6
SMBLX38	3/8	9.53	0.7
SMBLX12	1/2	12.70	0.7
SMBLX58	5/8	15.88	0.8
SMBLX34	3/4	19.05	1.0

Screw type

Model	For band width		Thickness
Model	Inch	mm	mm
SMBS14	1/4	6.35	1.5
SMBS38	3/8	9.53	1.8
SMBS12	1/2	12.70	2.0
SMBS58	5/8	15.88	2.5
SMBS34	3/4	19.05	2.5

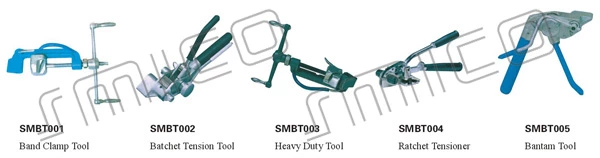

Application Tools

Stainless Steel straps and protection devices for LV-ABC lines

Model	Description	Weight
SMBT001	Band clamp tool for use with bands up to 3/4"(19.05mm)wide	2.0kg
SMBT002	Ratchet tension tool for use with bands up to 3/4"(19.05mm)wide ,and also for all coated bands .	1.8kg
SMBT003	Heavy duty tool	2.3kg
SMBT004	Another type of ratchet tensioner for use with bands up to 3/4"(19.05)wide and also for all coated bands .	1.8kg
SMBT005	It can be used with one handle .For using with bands up to 3/4"(19.05mm)wide	1.5kg
