Material：Brass(silver plating)Aluninium
Product property：MJPF is designed to connect the neutral messenger in aerial bundled cable .It is in accordance with NFC33-021 .The sleeve is with full tension .
And it's cap can prevent the water into the barrel .It is colored differently to distinguish the cable sizes .
Marked with type ,cable size ,die size ,inner cable length and number of crilnping .
|

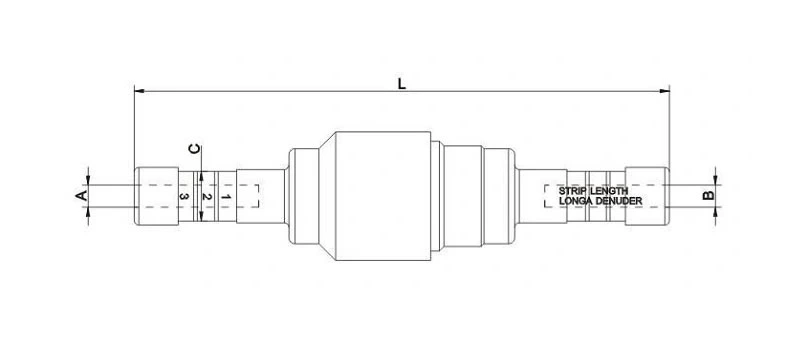

Model |
Cable Size (mm2) |
Plastic Sleeve Diameter (mm) |
Length (mm) |
|
|
A |
B |
C |
L |
|
|
MJPF 16/16 |
16 |
16 |
16.2 |
174.0 |
|
MJPF 16/25 |
16 |
25 |
16.2 |
174.0 |
|
MJPF 25/25 |
25 |
25 |
16.2 |
174.0 |
