Low voltage Insulation piercing connector Aerial Fuse Holder is used to protect street lighting power distribution lines and bare overhead power distribution lines connected to LV ABC lines from over current.

It is made of high quality materials resistant to mechanical and atmospheric impacts and UV radiation.

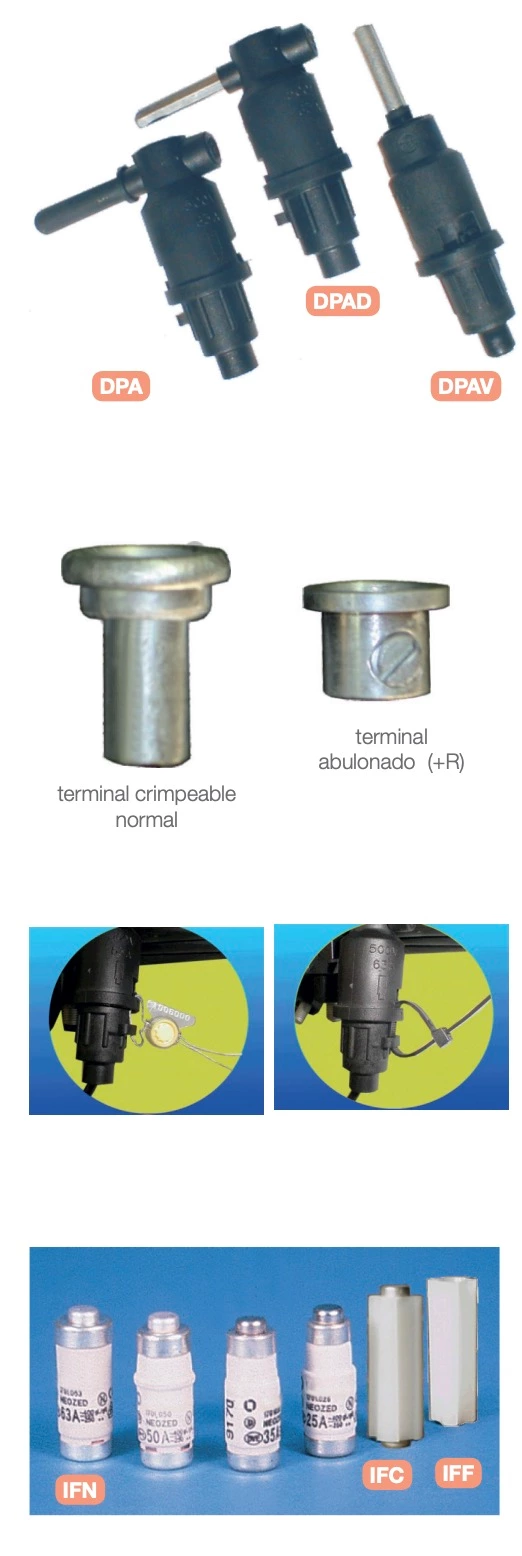

SDPA Overhead Fuse Holders up to 63 Amps

The SDPA model has been designed to connect consumers between low voltage overhead distribution networks and power lines service, being able to connect conductors from 1.5 (*) to 16 mm2 (AWG 16 to 5).

The SDPA allows the connection of the fuse with a steel spring stainless steel, its flat copper-tin contacts ensure a connection safe and adequate.
The SDPA is weather resistant, it is manufactured in two versions,horizontal and vertical (V). The base model SDPA is provided with a terminalcrimpable for connection to the customer and an isolated line contact for easy installation on main lines with insulated connectors from perforation (CPI).
SDPA can be used as a protection device, using fuses or as a connection point and disconnection point using a copper contact or a plastic element. This represents a great advantage over other products, because there is no need to eliminate fixed parts, or cut the net, and since it is difficult for the user to climb on the post for possible fraud with the connection.
The SDPA model has the possibility of putting seals or seals in order to ensure a secure connection. Using cables below 4mm2 is possible by stripping the conductor to the double the normal length, folding and twisting the bare wire, and crimping it in this way in the terminal.
