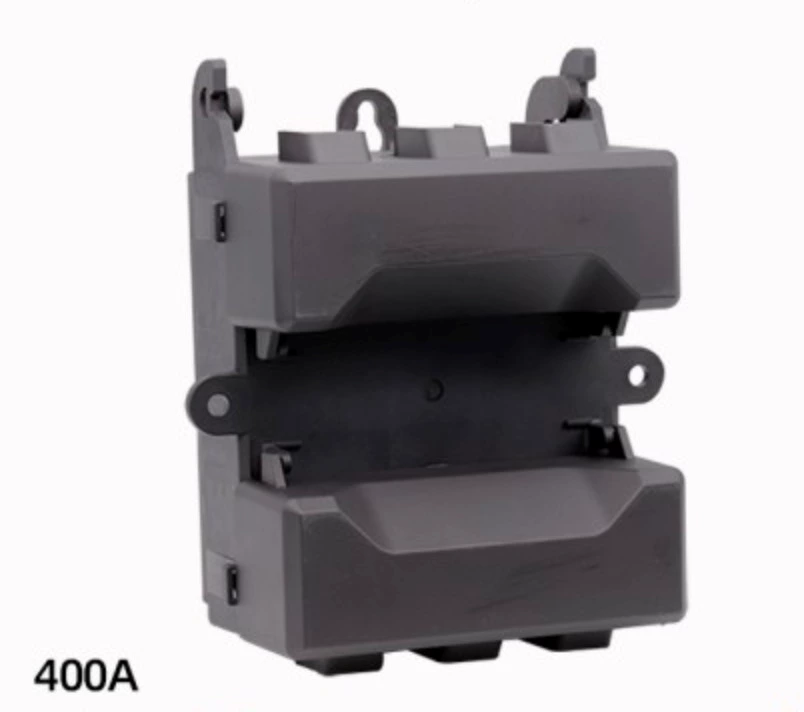

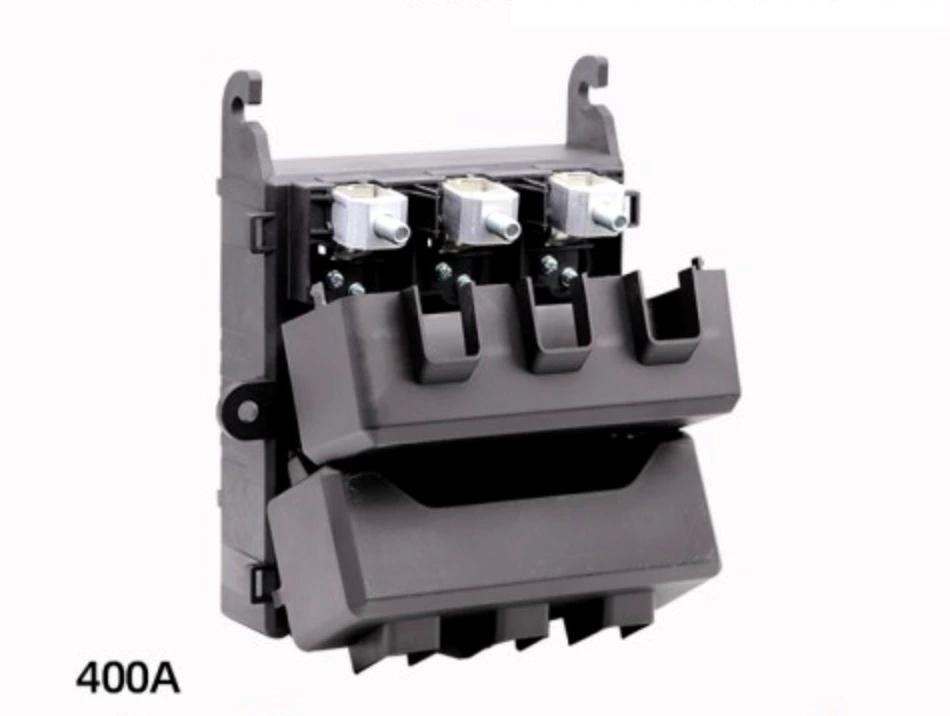

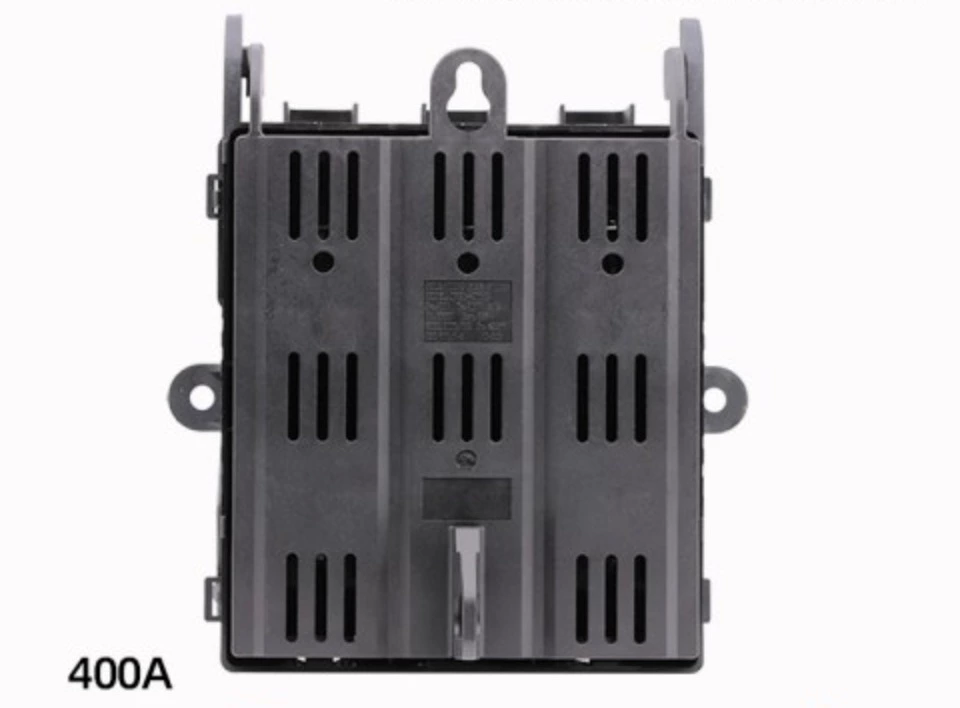

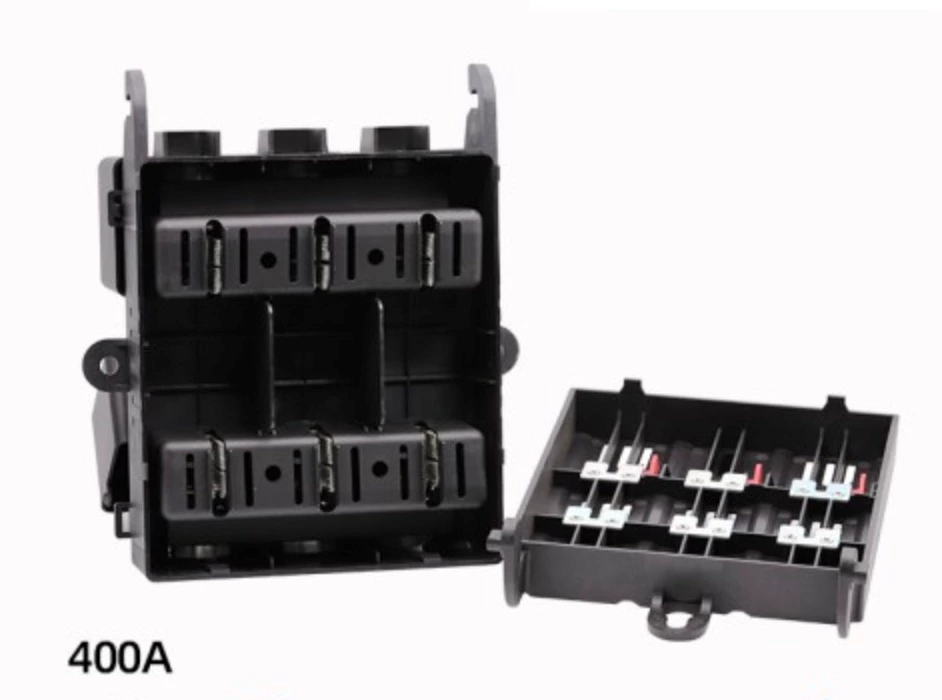

Outdoor pole mounted load fuse switch

General Description

The outdoor pole mounted load break switch DNS1-400/3 is capable of up to 400A fuse NH size 1 and 2.

It is ideal for all secondary distribution protectionsIt could be connected with cable lugs (not included) or by connector sconfigurable for unipolar operation,bipolar,tripolar etc.

With devices for signaling and indication of operation and safety accessories to improve the operation of the cquipment

Features

• Link Protector
• Operating light the fuse*indicator of installed fuse
• Viewer characteristics of the fuse installed
• Sealable Safety inserts for siblings ofbipolar-shaped sectionpole,pole,etc..
• eyelets suitable for proper and safe opening and closing operationassembly and disassembly of the cover

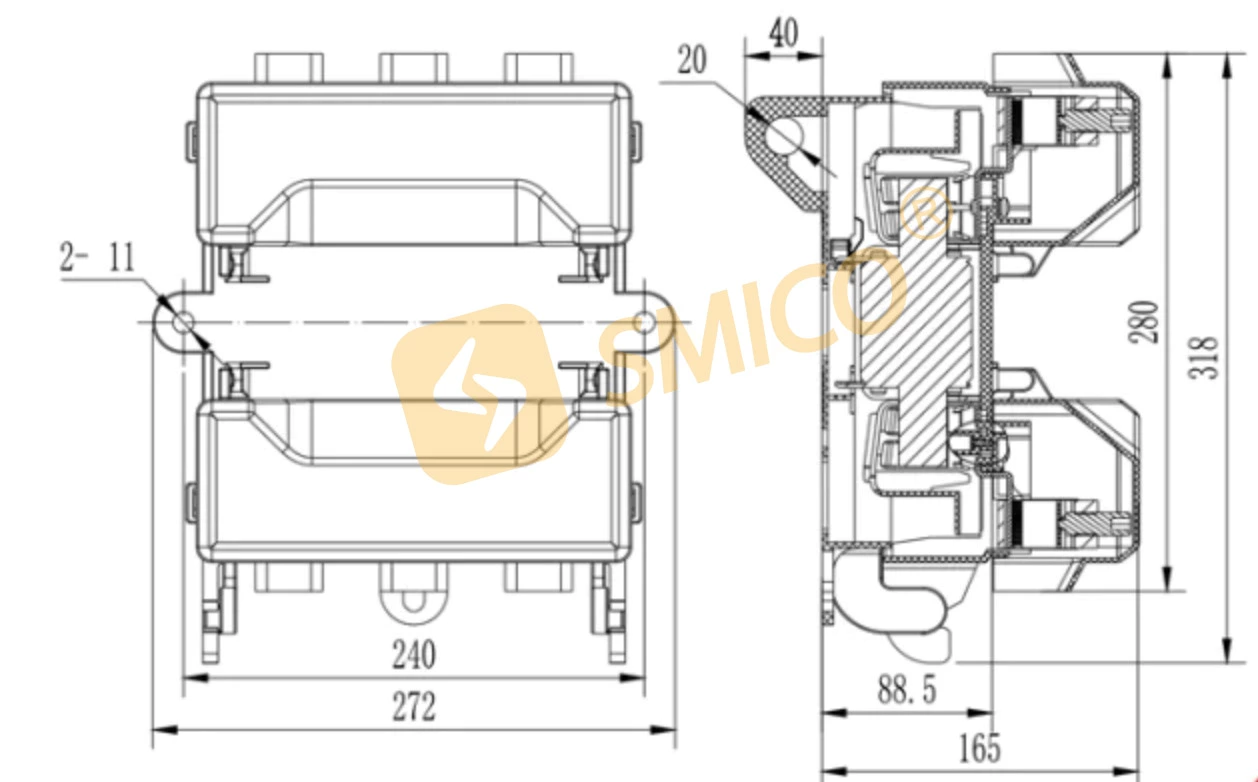

Over size and installation size

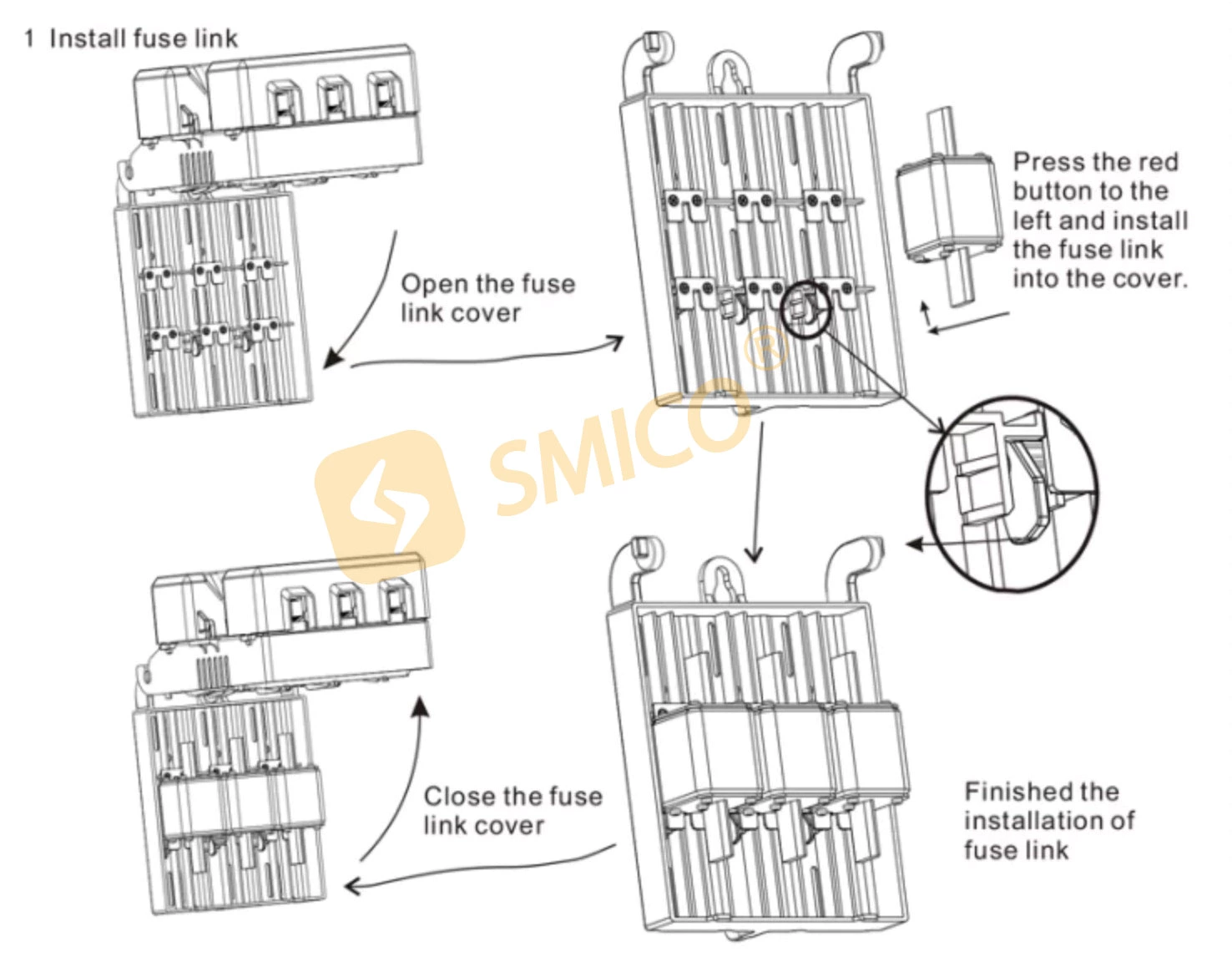

Pre-installation in advance

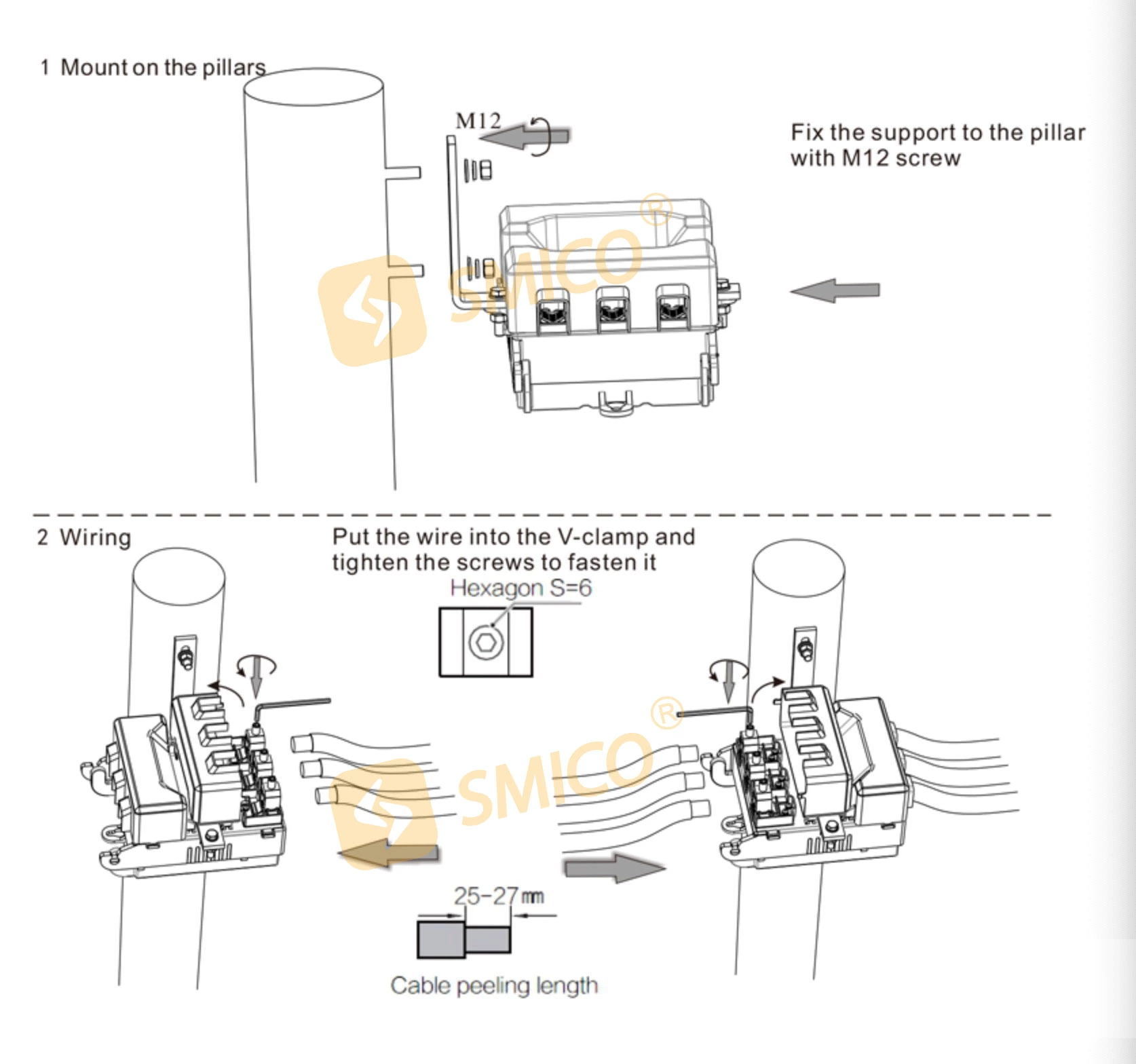

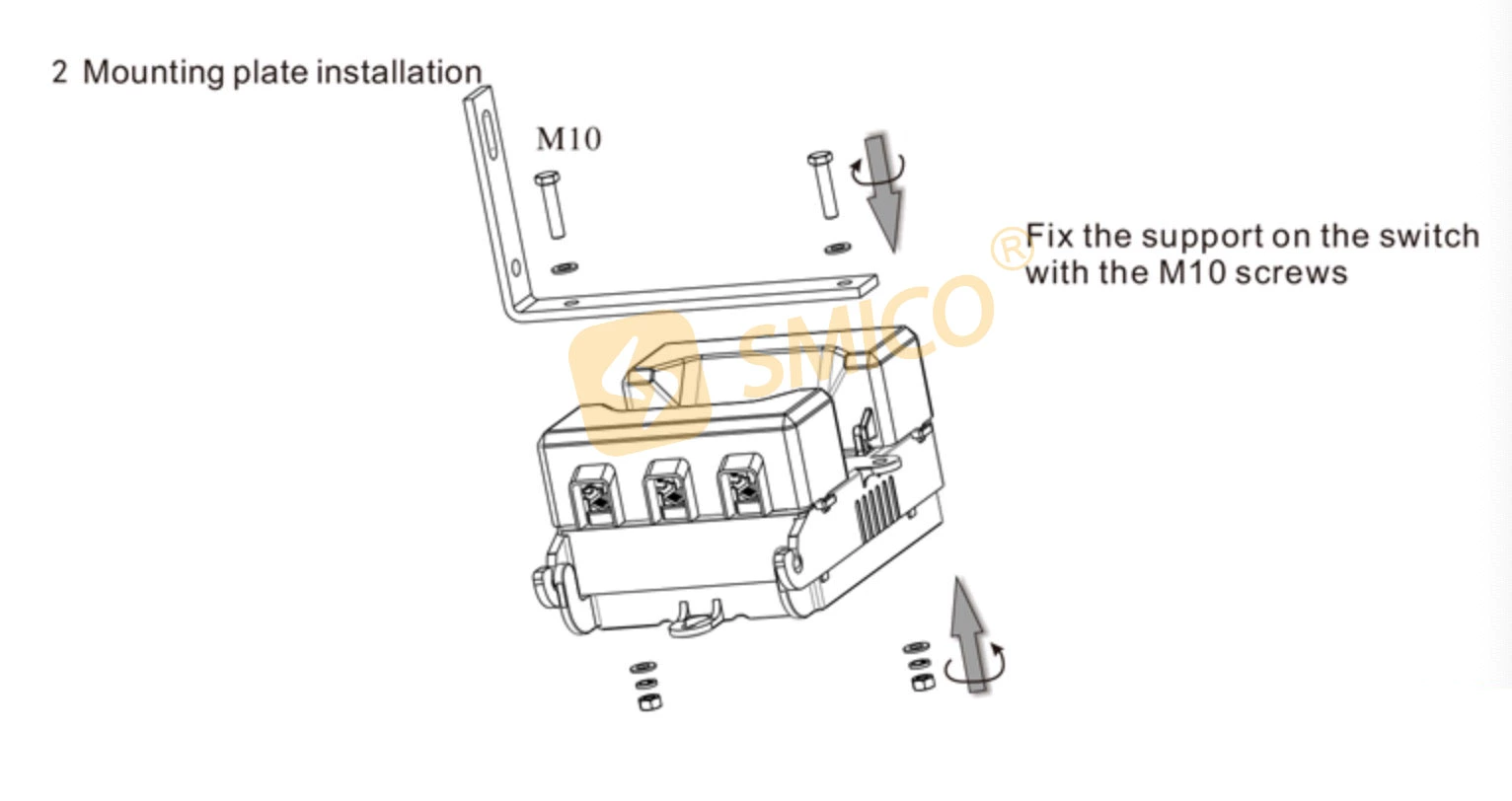

Pole mounted

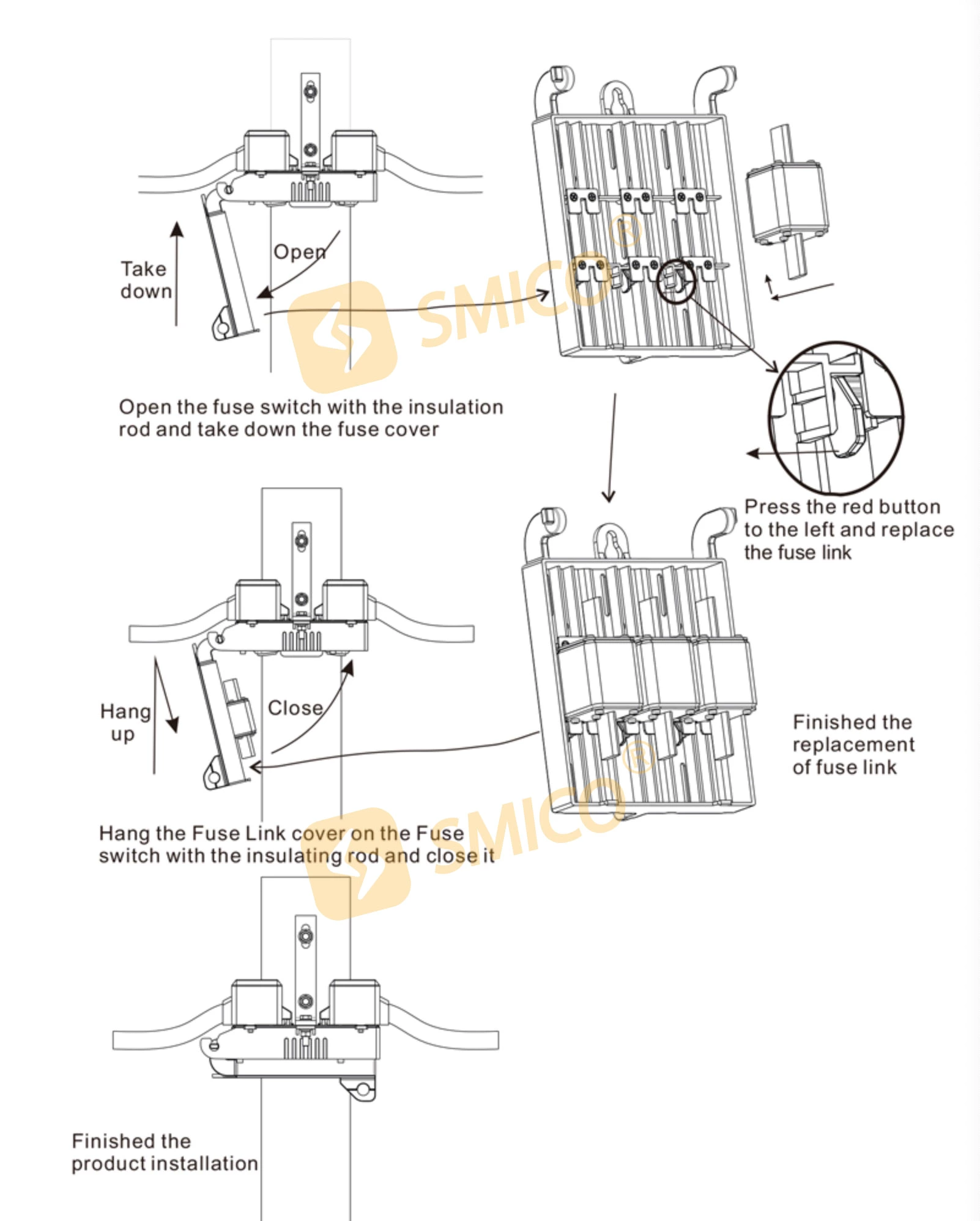

Replace fuse link
