ABC cable accessories low voltage insulation piercing connectors

ABC cable accessories low voltage insulation piercing connectors

Insulation Piercing Connectors (IPC) are used on all AB cable systems (messenger wire as well as self supporting system) to take a tap connection. This tap can be used to continue the line, distribute the line, used in street lighting or in service connections to households.

The design allows the connection to be completely sealed against any water ingress, thus acting as a waterproof connector.

There are four main applications to IPC's, namely street lighting, tap off, distribution box charging, and jumper connections. You can click here to learn more about the application of IPC's and how to chose the correct one for your requirements.

Get a Quote Now!

Material:

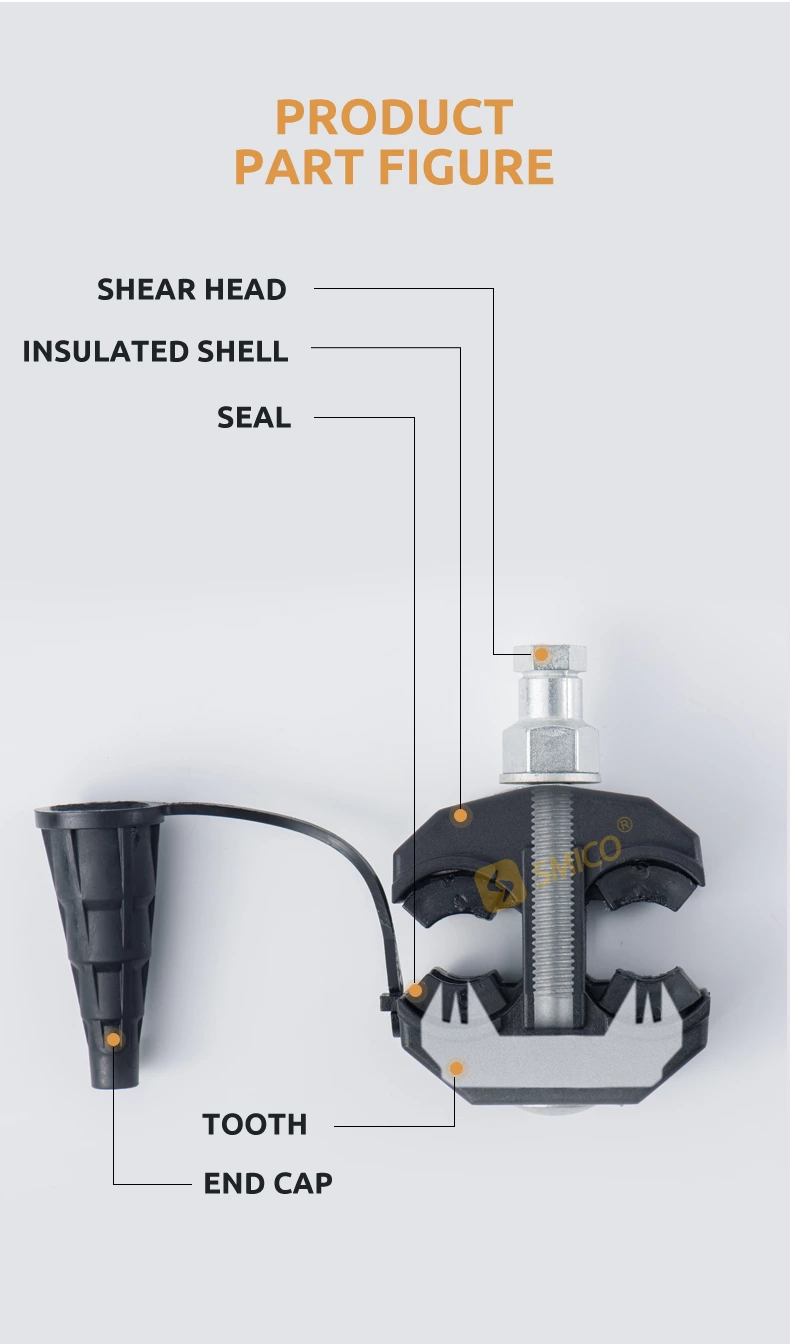

Body: Black High strength engineering-plastic used for mechanical reliability of the connector.

Contact Plates: Tinned Copper or Tinned Copper Alloy or Aluminium or Aluminium Alloy.

Fasteners: Galvanised Steel.

Shear Nut: Aluminium or Aluminium Zinc Alloy

Features & Benefits:

Complies to National and International Testing Standards (NF C, BSEN, etc.).

Tap connection can be taken from either side and grease filled end cap provided for safe termination.

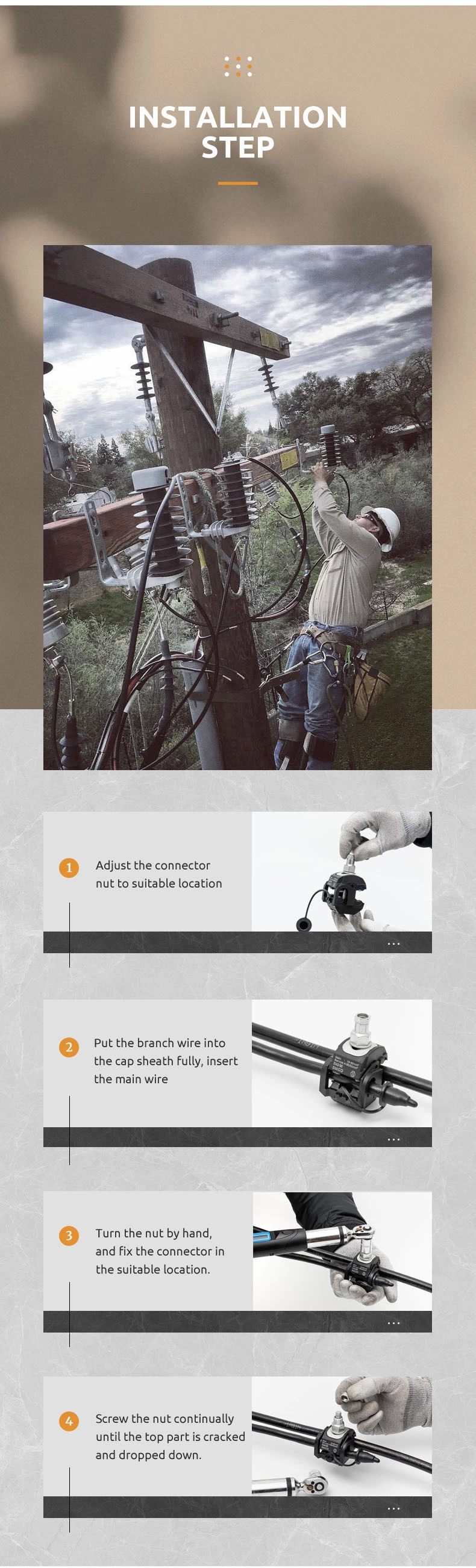

Easy and safe installation on live lines thus leading to less downtime during maintenance and installation.

Connections are made without stripping the cable ensuring long cable life and preventing loss due to theft.

Weather resistant and Waterproof (passes 6 KV underwater test) thus reducing distribution losses & faults caused by heat generation due to dust and water ingress.

Contact plates allows bimetallic use and are suitable for Aluminum to Aluminum and Aluminum to Copper connections.

Can accomodate a range of cable sizes thus simplifying inventory management.

Simultaneous tightening with shear nut design which prevents loose connections or overtightning.

No losable parts

Technical specification
