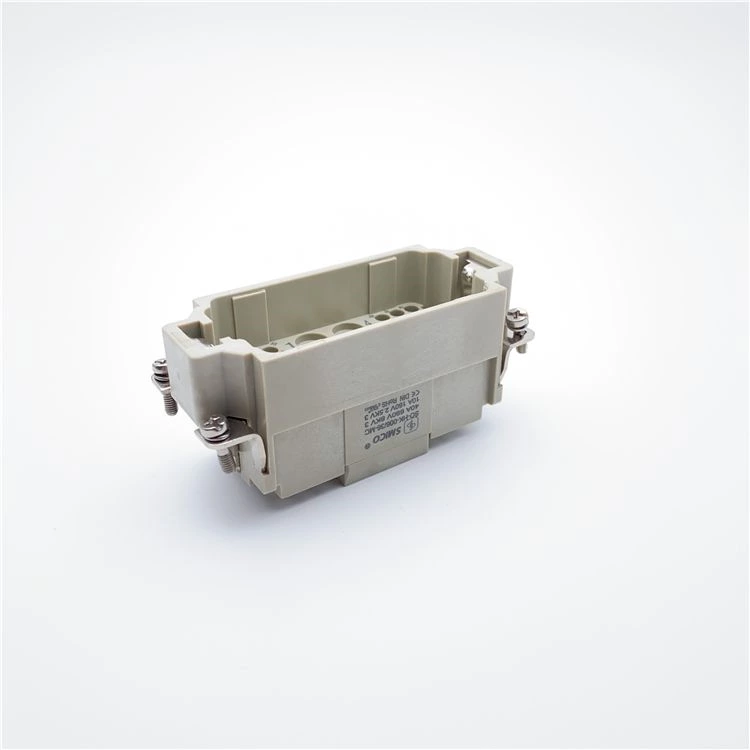

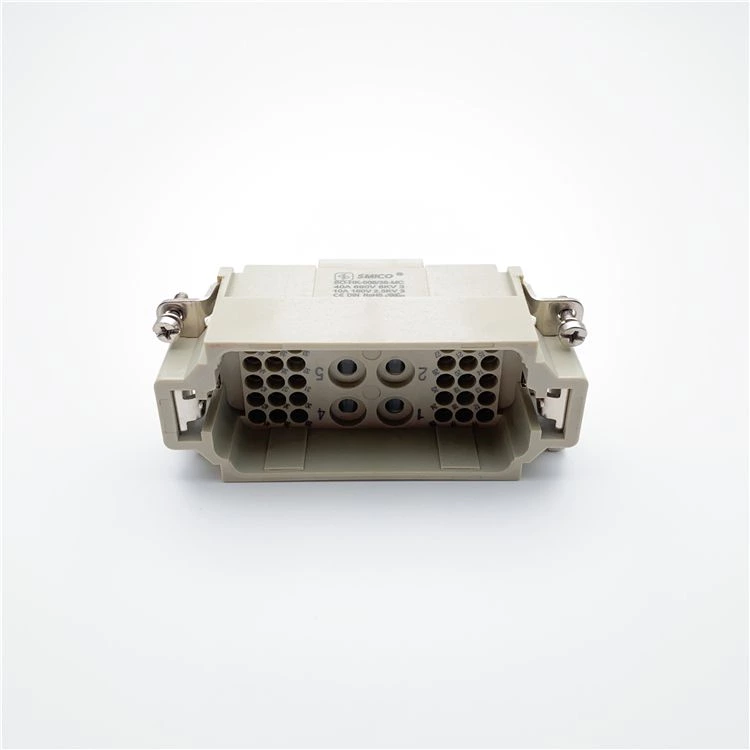

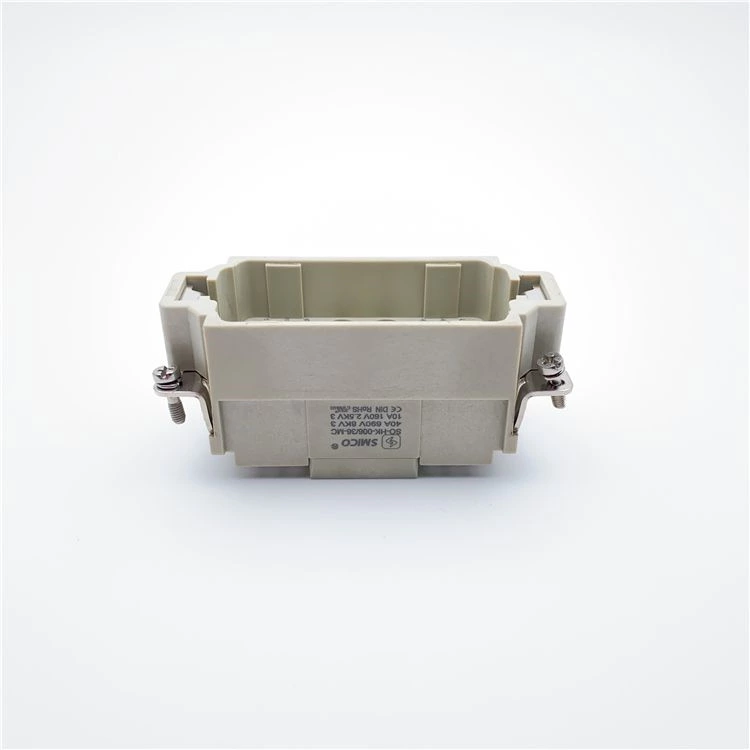

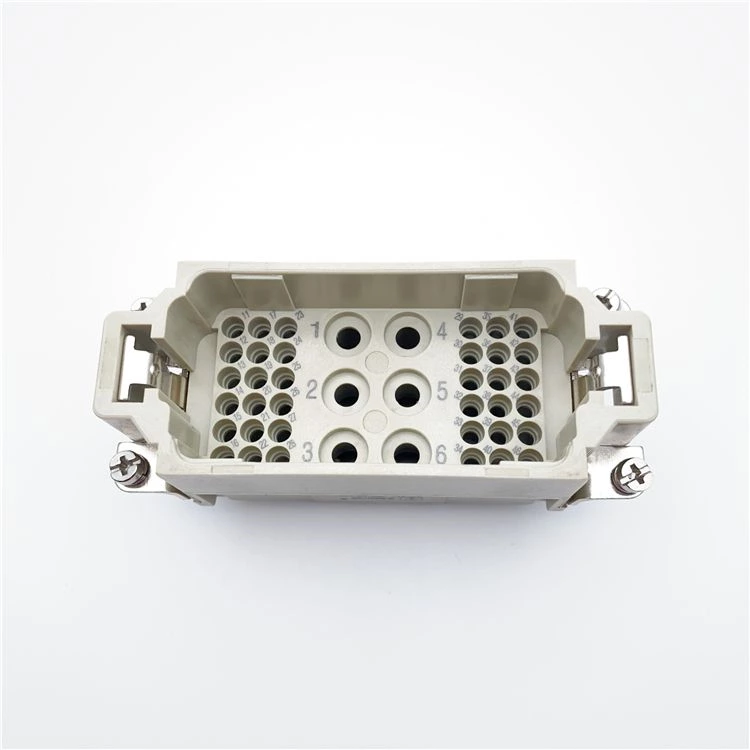

6 plus 36 Pin Heavy Duty Wire Connector SO-HK-006/36-MC 40A/10A With Crimp Terminal Inserts 09380423001

Part:SO-HK-006/36-MC Order No.:09380423001
Contact Now
Inserts Suitable Shell:16BHood/Housing
Number of contacts 6/36+PE
Electrical data acc. to EN 61 984
Power area
---Rated current 40A
---Rated voltage 690V
---Rated impulse voltage 8kV
---Pollution degree 3
Signal area
---Rated current 10A
---Rated voltage 250V
---Rated impulse voltage 4kV
---Pollution degree 3
Rated voltage acc. to UL/CSA 600/300V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Power contacts
---Material copper alloy
---Surface hard-silver plated
hard-gold plated
---Contact resistance ≤0.3mΩ
---Crimp terminal
------mm² 1.5-6mm²
------AWG 16-10
Signal contacts
---Material copper alloy
---Surface hard-silver plated
hard-gold plated
---Contact resistance ≤3mΩ
---Crimp terminal
------mm² 0.14-2.5mm²
------AWG 26-14
