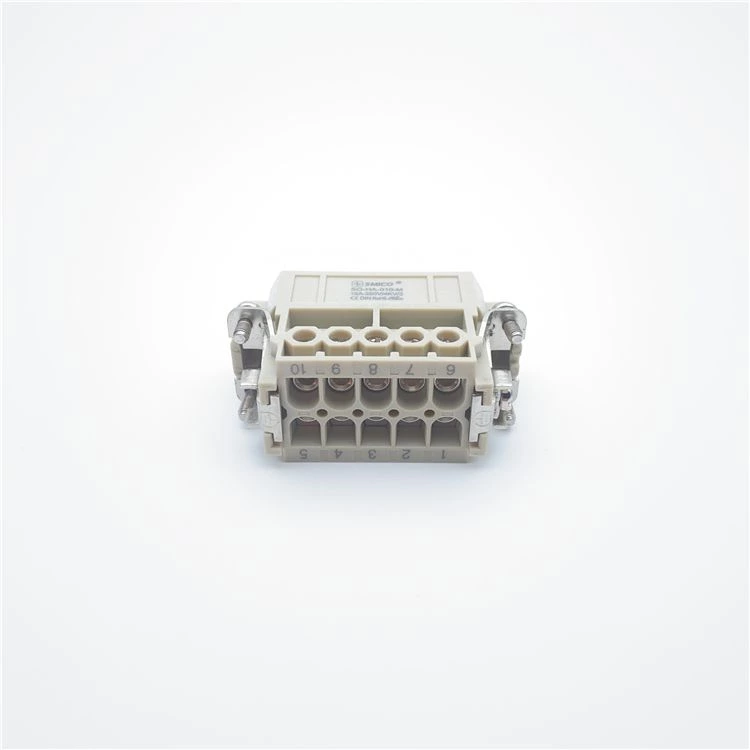

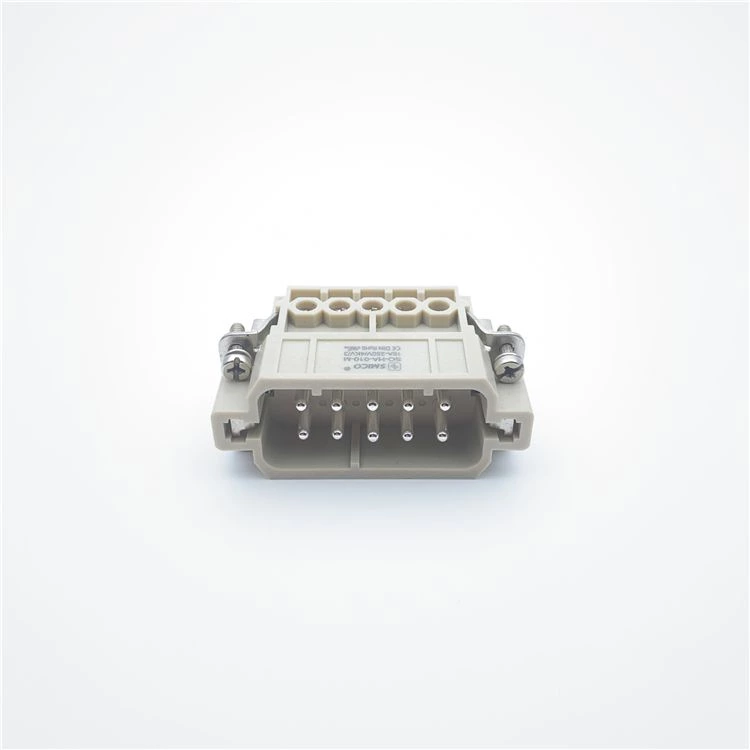

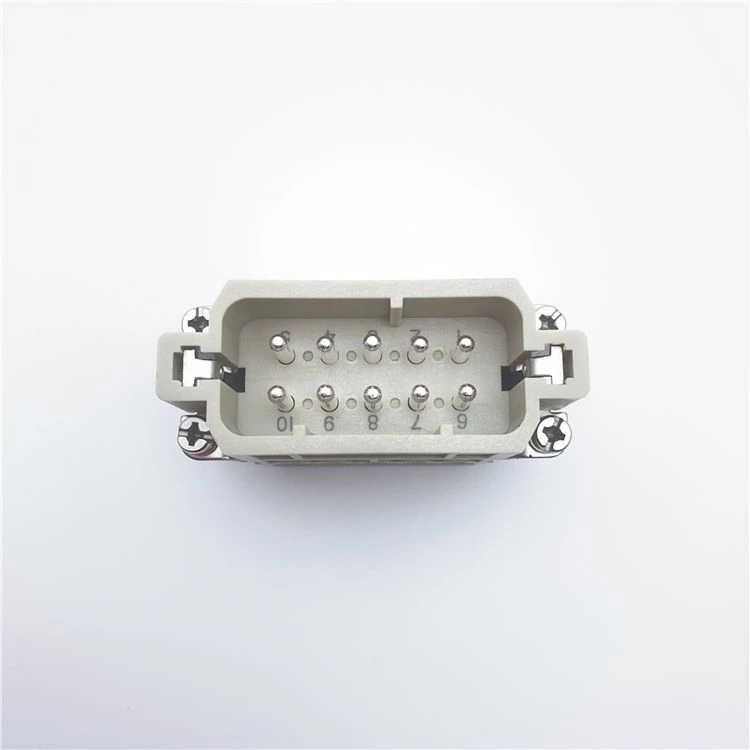

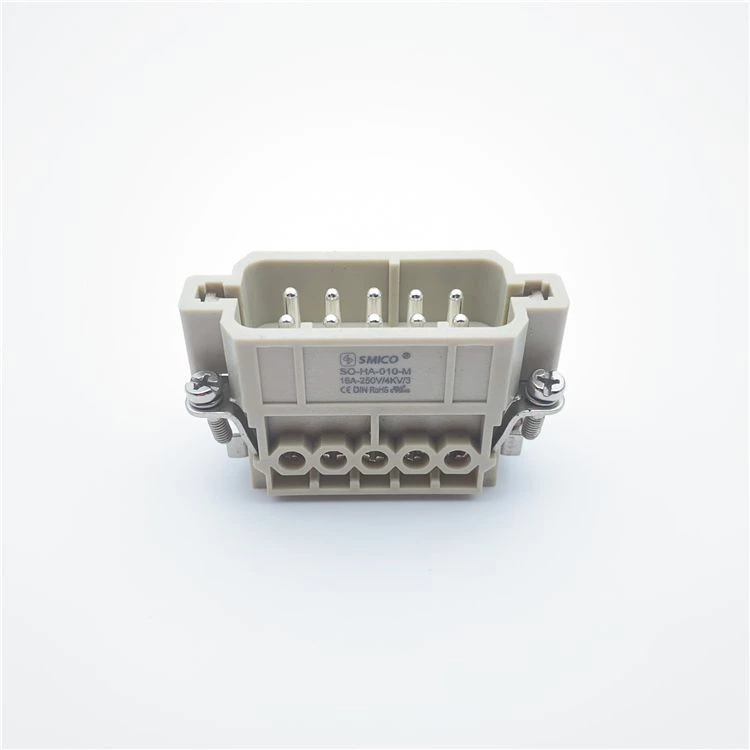

POS Wire To Board Connector Heavy Duty Connector 16 Amp Plug Socket Crimp Terminal

Part:SO-HA-010-M Product Certification:UL CUL CE ROHS DMT IEC-61984 Order No.:09200102612
Contact Now
Inserts Suitable Shell:10AHood/Housing
Number of contacts 10
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor 250V
---Rated impulse voltage 4kV
---Pollution degree 3
---or 16A 230/400V 4kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 1.0-2.5mm2
---AWG 18-14
---Tightening/Test torque 0.25N·m
