Low Voltage Energy House service Cable Anchoring

Low Voltage Energy House service Cable Anchoring

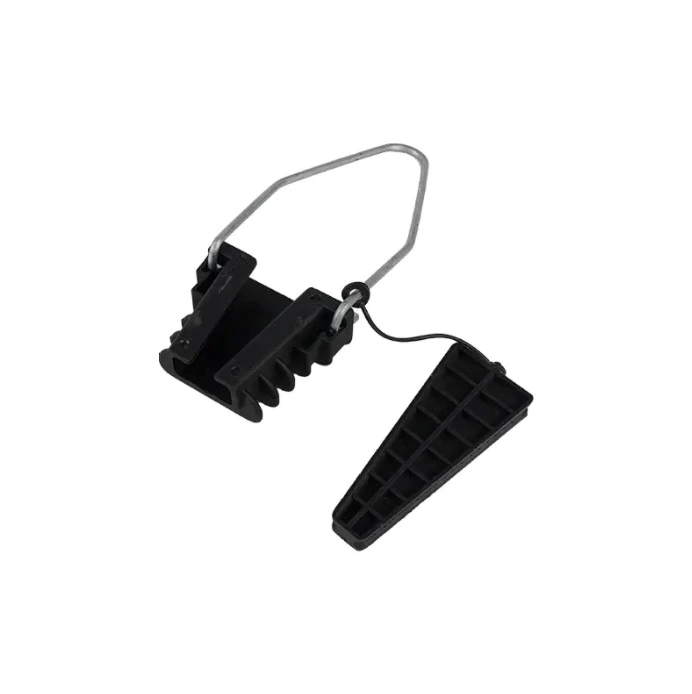

Anchoring clamp:

- The body is made of UV resistant, glass fibre reinforced synthetic material.

• -  The wedge is made of UV resistant synthetic material. 4 channels ensure the clamping of 2 or 4 conductors by distributing the loads, protecting the insulation. It is connected to the handle via its integrated link.

• -  The handle and the hook have good corrosion resistance: stainless steel for K307 and galvanized steel for K309 and L311.

• -  The hook can be adjusted once positioned (toothed rack with 10cm stroke).

• -  All of the elements are captive.

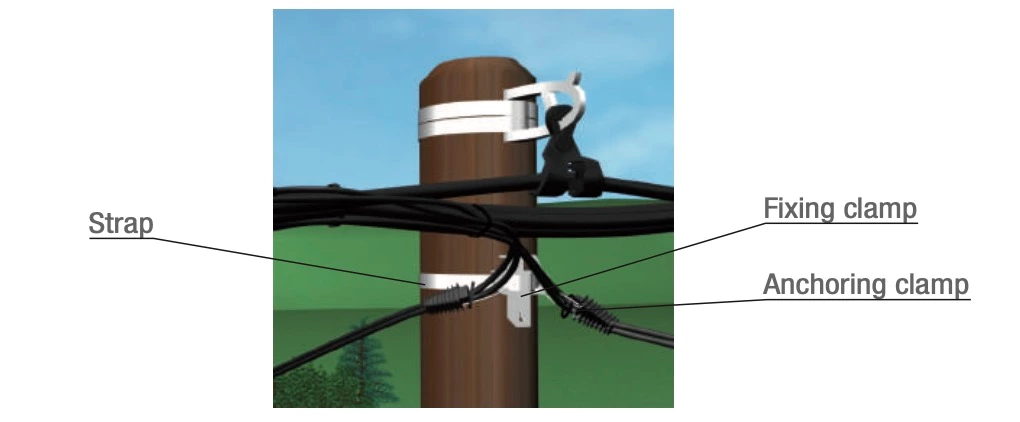

• -  The tensile strength is 200daN. Fixing clamp and bracket:
  - These elements are made of aluminium alloy.

• -  The fixing clamp is designed for single anchoring whereas the bracket offers up to 6 fixing points.

• -  Their specific design allows fixing on wooden, metal or concrete poles.

• -  The fixing clamp is implemented using a 10mm diameter bolt or using a 20x0.7mm stainless steel strap (tensile strength: 200daN).

• -  The fixing bracket is implemented using a 14 or 16mm diameter bolt or using two 20x0.7mm stainless steel straps (tensile strength: 200daN/anchoring point).
  This anchoring assembly meets the criteria of the NF C 33-042 and EN 50-483 standards.

•
